N-RE |
Guideline For Construction And Operation
Vehicles: Freight waggons/cars
|
Release
2.0.1
2007-06-02
|
Rules:
-
Each freight waggon/car comes along with a card in panel format 46 x 70 mm ...
-
... with at least this data at the front face:
- UIC type
- Category with secondary category
- Railway company
- Car number without checking number
- Characteristics
- Utilisation time (optional)
-
... with at least this data at the backside:
- Permitted maximum of speed.
- Length over buffers
- Loading length
- Cargo area
- Storage space
- Maximum weight
- Owner
-
...with a transparent slot on the backside, which can keep a "way bill" of the size of the card.
Recommendations
-
Freights should not be fixed on the cars, so that it can be loaded and unloaded as the original.

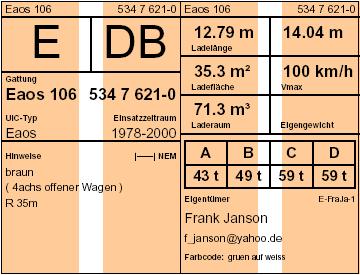

for UIC types E and F |
|

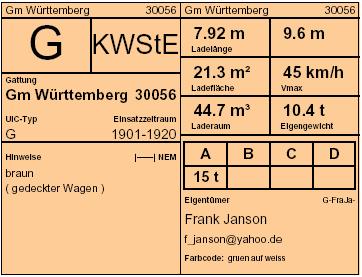

for UIC types G and H |
|

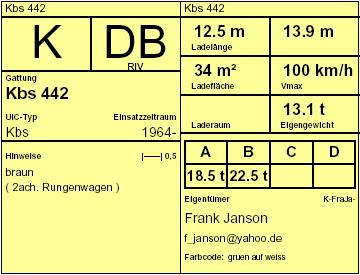

for UIC types K and L |
|

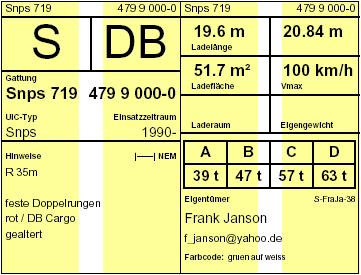

for UIC types R and S |
|

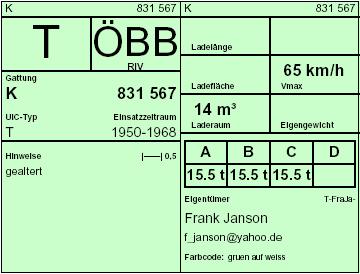

for UIC type T |
|

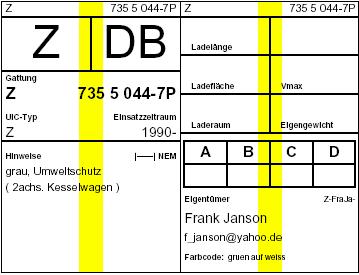

for UIC type Z |
|
Some N-RE-teams use plain white cards because they are easier to produce and better readable.
